Model: Leo & Leo XXL
CATALOG: 01-2000-610

MATERIAL HANDLING

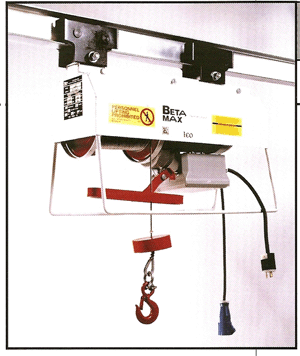

Electric portable hoist, 1000lbs

Electric hoist, Leo & Leo XXl 1000lbs

Now Faster, Higher and More Control

- Upper limit switch assembly stops the hoist instantly when activated

- Failsafe brake holds the load securely when not lifting or lowering. Loads are powered up and down, preventing free-falling or slipping.

- Non-rotating cable prevents spinning loads

- Variety of accessories available for lifting various materials

- Single Line Capacity of 1000lbs to 400ft at 80fpm, Double Line Capacity of 2000lbs to 200ft at 40fpm

Special lengths to 250' available on request

- 220V/3 phase/11AMP operation on Leo XXL with standard controller

- In conjuction with the Variable Frequency Drive Controller, Leo XXL offers:

- 220V/Single phase operation and soft start/stop

- Hand held pendant with Rheostat Control Knob varies speed from 3-5fpm to 80fpm smoothly

- Perfect control for lift and place projects such as glass, stone and other fragile material






SPECIFICATIONS
Make BETA MAX
Model Leo & Leo XXL
CAPACITY  1000lbs single line, 2000lbs double line
DUTY CYCLE  50%
FEET PER MIN  Single line 80', Double line 40'
LIFT CAPACITY MAX HEIGHT  Single line 220ft, Double line 110ft
VOLTAGE  220V-14 AMPS-1phase, 220V-12AMPS-3phase
WEIGHT  195lbs, Shipping 210lbs




RELATED ITEM DOCUMENTS

  To see Beta Max hoist accessories click here

ADDITIONAL COMMENTS
Mounting Options

- Scaff Trac

- Tressle

- Monorail

- Fixed I-Beam

- I-Beam Trolley

Mounts are sold separate





RECOMMENDED SAFETY USE
Never have anyone stand immediately beneath the hoisting cable. Wear hardhat at all times.

Minimum of 10gauge electric cord should be used when hoist is far from power source
