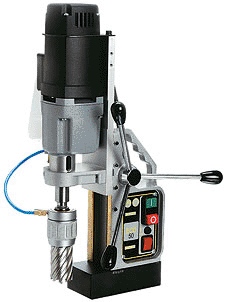

Model: CSU-50AK
CATALOG: 01-2000-4302

DRILLING EQUIP.

Magnetic Drills


Lightweight, two-speed high-performance drill - holes up to 2 " dia.

  • Drills up to 2" diameter holes with Annular Cutters
  • Lightweight and portable at 29 lbs.
  • Strong 10.5 Amp motor and two-speed gearbox
  • HD dual-coil magnet has holding strength of 3750 lbs.
  • Easy "twist and lock" keyless arbor for cutters
  • Compact height of 16-1/2" allows drilling in small spaces
  • With a 3/4" chuck (Part No. IBK-22), these models easily convert to standard drill presses with a 5" stroke for up to 7/8" dia. twist drills
  • Optional Power Assist to maintain maximum RPM under full load (Part No. 020.0330)
  • One-year warranty






SPECIFICATIONS
Make CS UNITEC
Model CSU-50AK
AMPS  10.5
ARBOR SIZE  3/4''
CAPACITY  2'' hole (7/8'' with twist type bit)
DIMENSIONS  16-1/2'' H x 9'' L x 6-3/8'' W
OTHER  3750 lbs (Magnetic Force,1" Plate)
RPM  Gear 1: 250 RPM, Gear 2: 450 RPM
SIZE  6-1/2'' L x 3-1/2'' W (Magnet base)
VOLTAGE  110V
WEIGHT  29 lbs




RELATED ITEM DOCUMENTS

  Additional info

ADDITIONAL COMMENTS
Standard equipment includes:
Auto Chuck cutter holder, carrying case, safety chain, carabin hook and allen keys.


RECOMMENDED SAFETY USE
BEAR IN MIND IF THERE IS AN ELECTRICAL INTERUPTION THE DRILL WILL DETACH AND FALL IF IT IS USED IN A VERTICAL POSITION
