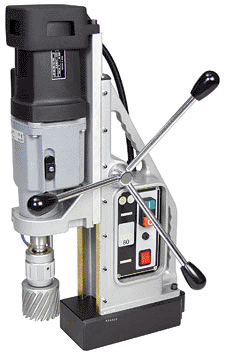

Model: CSU-80AK
CATALOG: 01-2000-595

DRILLING EQUIP.

Magnetic Drills


Powerful high-torque motor with multiple speeds - holes up to 3-3/16 " dia

  • Robust, high-torque 15 Amp motor with four-speed gearbox (100 / 175 / 245 / 385 RPM)
  • Multiple speeds match cutter diameter to correct RPM to provide increased tool life and reduced cutter breakage
  • High-density dual-coil magnet has holding strength of 7040 lbs.
  • Drills up to 3-3/16" diameter holes with annular cutters and 1-1/4" with twist drills
  • Keyless arbor for annular cutters
  • Mechanical slip clutch disconnects the transmission in case of overload Automatic lubrication system
  • MT3 output spindle has 11-1/4" max. stroke
  • Optional Power Assist to maintain maximum RPM under full load (Part No. 020.0336)
  • One-year warranty






SPECIFICATIONS
Make CS UNITEC
Model CSU-80AK
AMPS  15
ARBOR SIZE  3/4''
CAPACITY  3-3/16'' dia (1-1/4'' dia, twist drill)
DIMENSIONS  16-1/2'' H x 9'' L x 6-3/8'' W
OTHER  7040 lbs (Magnetic Force,1'' Plate)
RPM  100 / 175 / 245 / 385 RPM (4 gears
SIZE  9'' L x 4-3/8'' W (Magnet Base)
VOLTAGE  110V
WEIGHT  57 lbs




RELATED ITEM DOCUMENTS

  Additional info click here

ADDITIONAL COMMENTS
Standard equipment includes:
Auto Chuck cutter holder, carrying case, safety chain and carabin hook.


RECOMMENDED SAFETY USE
BEAR IN MIND IF THERE IS AN ELECTRICAL INTERUPTION THE DRILL WILL DETACH AND FALL IF IT IS USED IN A VERTICAL POSITION
