HOME > SALES > ITEM OPTIONAL EQUIP / SUPPLIES > SCAFFOLDING, LADDERS > SCAFFOLD FRAMES

Related Item Accessories / Supplies / Optional Equipment
CATALOG NO.	ITEM DESCRIPTION
6000-15	Scaffold tubular cross braces, 8'x4' ---B84 DETAILS
6000-3686	Scaffold #7 couplin pin w/1" collar ---CP7-1 DETAILS
6000-3684	Scaffold galvanized spring clip --SC DETAILS
6000-26	Scaffold galvanized span pin -SP DETAILS
2000-3318	Heavy duty scaffold 8" rubber caster (wheel) ---C8R DETAILS
6000-13	Aluminum platforms, 8'x19" ---AB8 DETAILS
6000-3708	10' Leelite scaffold wood planks --LEELITE DETAILS
6000-3709	10' DI-65 scaffold wood planks --DI-65 DETAILS
6000-25	Scaffold screw jacks with base plate --SJ1P DETAILS
6000-51	Scaffold socket screw jack --SJ1S DETAILS
6000-31	Scaffold 20" side bracket w/saddle hanger --SB20-SH DETAILS
6000-3232	Scaffold outrigger 4-piece set --RTOR DETAILS
6000-33	Scaffold guard rail, 5' --GR5 DETAILS
6000-34	Scaffold guard rail, 8' --GR8 DETAILS
6000-35	Gaurd rail post female, w/flip lock --GRP-L2-N DETAILS
6000-40	Scaffold forded swivel clamp --CLAMP-S DETAILS
6000-38	Scaffold wall tying component -WTC36 DETAILS
6000-37	8' scaffold stairway span, w/two rails --ST8 DETAILS
8000-4039	Scaffold hoist arm wheel, 12" --HA-W DETAILS
6000-3712	Hoist arm for hoisting wheel --HA DETAILS

Above items are selectable, to add to your cart as needed. Sign-in and select add-to-cart below to see these options.

SIGN-IN TO GET A QUOTE

To get a personalized quote, add to your cart. All merchandises are sold at the store only.

Model:	TF6H
CATALOG:	01-6000-14

This item is also available for
DISCONTINUED	View Item

SCAFFOLDING, LADDERS

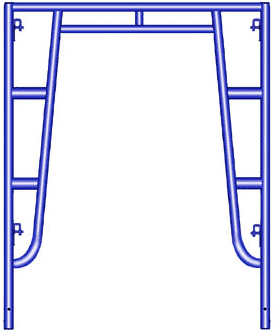

Walk-thru pipe scaffold, 6'4"x5'

V-Lock pipe scaffold for outdoor and indoor work

This walk-thru style pipe scaffold can be erected using 9 ft cross braces that actually set the two frames apart by 8 ft.
Lock to lock space: 4 feet
Powder coated for long lasting

Very rugged, made of manganese steel and safe style are ideal for outdoor and indoor projects involving masonry or other type of rehabilitation building works. They are very easy to assemble, or take apart. You can use them with 10 ft Osha-certified wood planks or 8 ft aluminum planks. Also the triangular (bicycle) brackets and other optional accessories make your scaffolding tasks simpler and more productive.

SPECIFICATIONS
Make	--
Model	TF6H
DIAMETER	1.69'' (Tube)
DIMENSIONS	6' 4''H x 5'W
OTHER	Pipe (13 gauge tube)
PSI	60,000+ (yield strength) 70,000+ (Tensile)
TYPE	V-LOCK
WEIGHT	46 lbs

ADDITIONAL COMMENTS

Ask about various accessories to customize your order

RECOMMENDED SAFETY USE

Always secure scaffold erection to building per Osha standards (Minimum you must tie, guy, or brace every 26' vertically, and every 30' horizontally)Check with Osha standards to confirm proper rules

Always use safety railings at the working level

Always use outrigers when you stack up two or more sections, and use as free-standing towers

Over 10' above lower or ground level, full protection systems and falling object protection must be installed.

We Accept

To get a price

Request a Quote via email, or call us at 718-782-7887 and speak to a sales representative. Make sure you have the catalog number ready.
